Strut assembly replacement

Cost to replace strut assembly

How you drive, and the roads you drive on, have an impact on your vehicle's suspension system.

If you’re a city dweller and it seems like you live your life sitting in traffic then your suspension may last longer than someone who keeps driving even after the GPS has told them there are no more mapped roads on the way to their destination.

There are numerous components to a suspension system. The suspension holds the frame of the vehicle off the road and distributes the weight to the wheels in a way designed to keep tyres on the road and performing effectively.

All vehicles have springs and/or shock absorbers at each wheel to absorb road impacts and irregularities.

Most cars will have struts at the front and shock absorbers in the rear, however there are variants to this, depending on your car type.

Let’s focus on the struts. If you do find a strut is on its way out, then they will need to be replaced.

I did mean to say ‘they’ because even if only one has gone, you should ideally replace both.

Replacing only one would be like if you only shod one side of a horse but not the other. You’re not going to get the best ride.

Struts vary greatly between cars, but to replace a pair of them you could be looking at $300 to $1000, depending on the make and model of your vehicle.

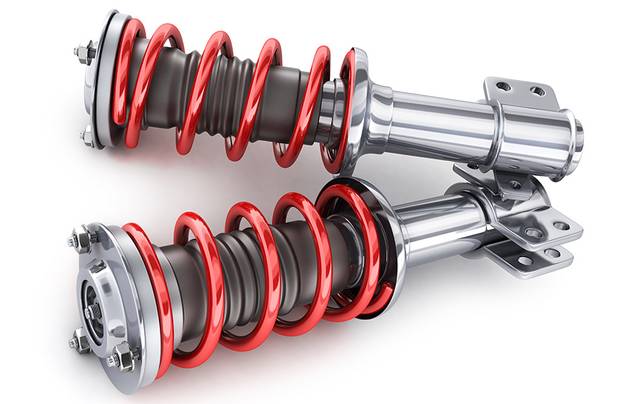

What is a strut assembly?

The strut assembly is part of the suspension system and plays an important role in absorbing any jolts and vibrations that occur from uneven road surfaces.

A complete strut assembly consists of: strut (shock absorber or damper), spring, boot, isolator, upper and lower spring seat, and top mount.

A complete strut assembly has everything together in one unit ready to place straight into the vehicle - there is no need to compress and seat the springs etc., as it comes pre-assembled.

A strut assembly is situated above the wheel and attaches to other suspension components - the frame of the car and the wheels.

The strut assembly is designed to offer structural support to the suspension system while doing it’s job of creating a smooth ride and keeping the wheels on the ground.

Symptoms that the strut assembly needs replacing

  • Front of vehicle dips down on braking
  • Fluid leak around strut
  • Irregular tyre wear
  • Strut is physically damaged
  • Bottoming out on rough roads or driveways
  • Ride quality is compromised
  • Vehicle bounces, sways or rocks more than usual
Strut assembly replacement

How is the strut assembly replaced

Since the strut assembly is a complete unit, it is just a matter of removing the old assembly and replacing with it the new.

  • Car is jacked up
  • The strut top mount bolts are undone
  • Suspension components and any brake lines are unbolted and removed from around the strut
  • Strut is removed from car
  • Fitment surfaces are cleaned
  • New strut is positioned and strut top mount bolts lightly tightened
  • Suspension components and any brake lines repositioned and bolted on
  • Top mount bolts are tightened and other bolts are checked
  • Lower car from jack
  • Test drive the vehicle

Tips to remember

Don’t leave it too long before you replace your struts - you run the risk of uneven wear on your tyres, which will be an additional expense.

It’s a good idea to have a wheel alignment done after replacing the strut assembly as replacing the strut assembly may affect the alignment settings.

How important is replacing the strut assembly?

If you continue to drive with worn struts you won’t just get a rough ride but you run the risk of your car not responding the way you would want it in the event you need to take evasive action.

Your suspension helps to keep your vehicle in optimal contact with the road.

If this is compromised and you keep driving, then you’re making the decision to risk your own safety and others.

Best to have an awesome AutoGuru mechanic replace your struts for peace of mind and better road handling.
