Bendix brake inspection checklist

avatar image

Updated 9 Apr 2021

Bendix

Article Image

Sponsored

It’s back to school time, and Aussie families are shopping, preparing uniforms, getting equipment and dusting off the school bags in preparation.

Something that shouldn’t be forgotten, however, is the trusty family car!

Mechanics can be flooded with vehicles getting a last-minute check over and a service before hitting the road for school drop-off duties.

One of the most important safety aspects to check is the brakes.

It could mean between stopping safely or not at all.

Fortunately, Bendix has a checklist that’ll make a brake inspection quick and easy.

1. Spongy brake pedal

Does the vehicle have a spongy brake pedal recently? If that is the case, it’s most likely time to do a brake fluid flush. The spongy brake pedal comes from air bubbles present in the braking system. With bubbles, the brake fluid cannot provide maximum pressure to the brakes, reducing braking capabilities. Brake fluid flushes should be done according to manufacturers’ recommended intervals. However, if there is no service history for the car, a brake fluid flush should be done for peace of mind.

2. Low on brake fluid

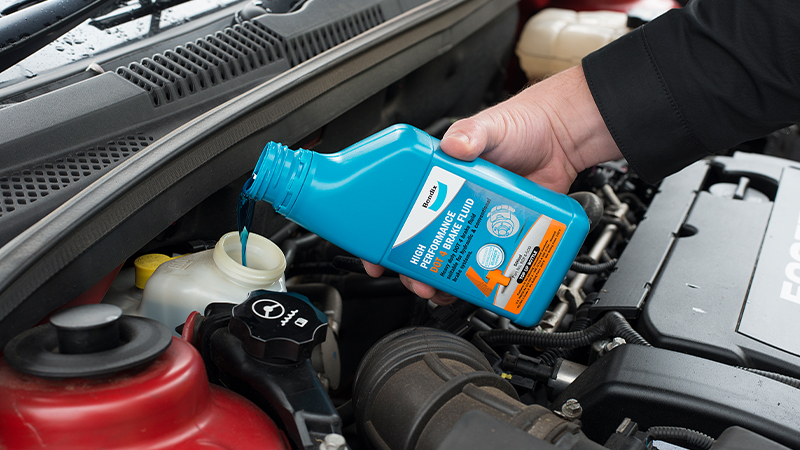

If the brake fluid flush has been done recently, check the brake fluid reservoir and ensure that the fluid is at the maximum or full line. If there is brake fluid missing, it is normal, just top it up with the car manufacturer’s recommended brake fluid specifications (DOT3, 4 or 5). Make sure to only use brake fluid from a sealed, unopened bottle. As brake fluid absorbs moisture over time, brake fluid from previously opened containers will be unsafe to use.

3. Brake pads

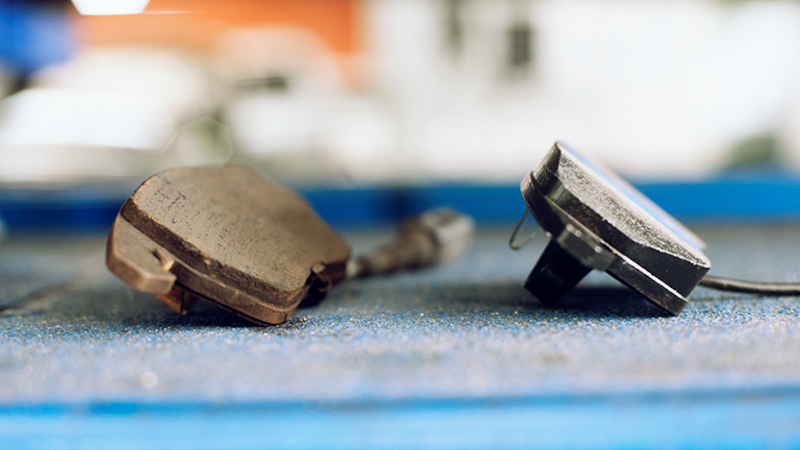

Visually inspect if the brake pads require replacing. For a thorough inspection, jack the car up and remove the wheels. Check if the brake pads have reached the wear marks or has uneven wear. Replace if its past the wear indicator or has uneven wear. It’s best to replace them with new brake pads if its worn close to the indicator. As long road trips are much harsher on cars, there is a chance the pads will be very worn before the journeys are over.

4. Uneven wear on brake pads

If there is significantly more wear on a set of brake pads than the other (left to right), this usually indicates a problem with the brake caliper. Usually, it’s just a simple regrease of the sliding pins, but in extreme cases, the caliper may need a rebuild or replacement. Be sure to use Bendix Ceramic High Performance Synthetic Lubricant on all moving parts of the caliper when replacing the pads.

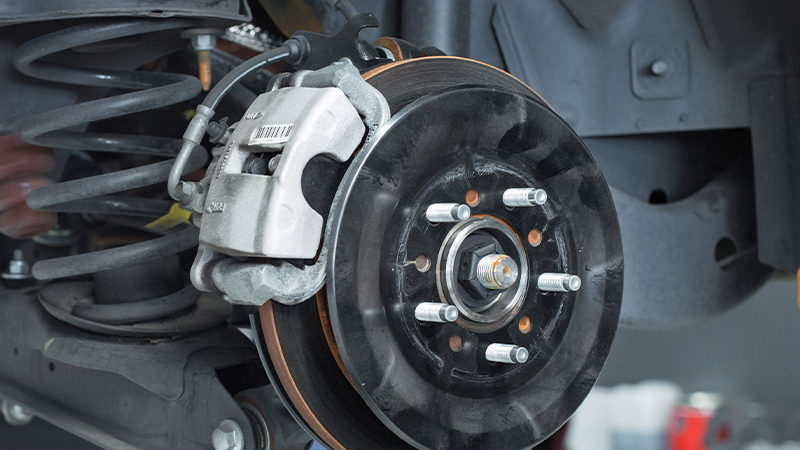

5. Brake rotors

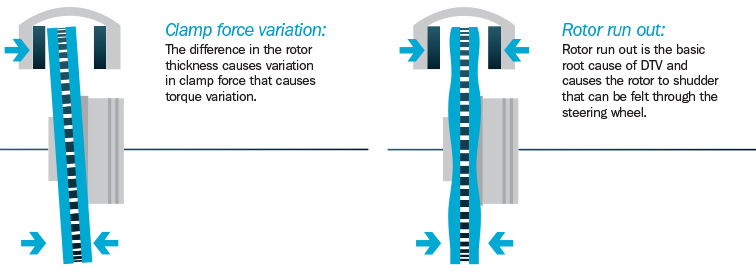

With the wheels taken off, make sure the rotors are cool before inspection. Feel around for rough spots, irregular grooves, or cracking. Check for any uneven wear by visually inspecting the edges. If one side of the rotor is thinner than the other, it may  have severe disc thickness variation (DTV). Ensure the rotor is not  worn down to its wear markers. If any symptoms are present, the brake rotors should be machined or replaced (if its worn down to  the markers).

After checking the rotors and pads, ensure to clean with Bendix Brake/Parts Cleaner & Degreaser to remove any contaminants present on brakes and its parts.

Bendix products are available from leading automotive stockists.

Visit www.bendix.com.au/stockists to locate your nearest stockist.

Follow Bendix on their Facebook page for the latest news, technical bulletins and product releases: www.facebook.com/bendixworkshop
